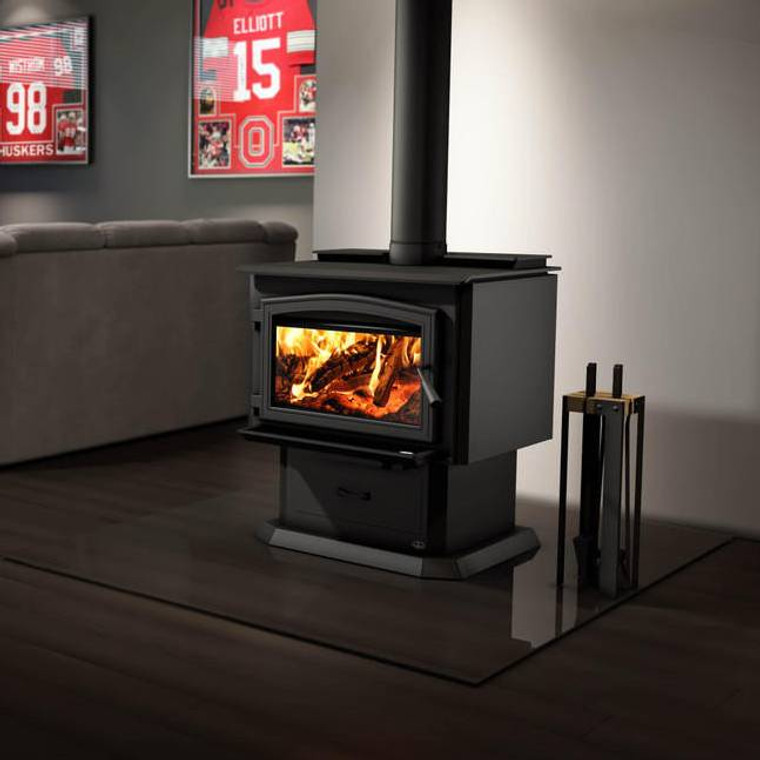

Osburn 3500 Wood Burning Stove

By: Osburn Wood Burning Stove Fireplace Products
SKU:
OB03500
$3,399.00
Current Stock:
Adding to cart… The item has been added
Satisfaction gurantee icon
Certified Experts

Always Available

Satisfaction gurantee icon
Full Manufacturer's

Warranty

Specifically designed to face the rigor of winter, the Osburn 3500 is an essential for any spacious home, especially in harsh weather conditions. Despite its emissions below 2.0 g/h, this wood stove utilizes a user-friendly, non-catalytic technology as well as a significant reduction of fuel consumption. The unit features a firebox that can hold up to 50 lb of cordwood, as well as a blower, a thermodisc and an airmate for optimal heat distribution and unparalleled comfort.

A choice of door overlay, a fire screen, a glass ash lip are available as options.

Discover the additional qualities of the Osburn 3500 wood stove

APPLIANCE PERFORMANCE (1)

Fuel type : Dry cordwood (16" recommended)
Recommended heating area-ft² : () 1,000 - 2,700
Overall firebox volume-ft³ : 3.5
EPA loading volume-ft³ : 2.84
Maximum burn time : () 10 h
Maximum heat output-dry cordwood : (2) 110,000 BTU/h (32.2 kW)
Overall heat output rate < : (2) (3) 18,200 BTU/h (5.3 kW) to 49,500 BTU/h (14.5 kW)
Average overall efficiency (dry cordwood) : (3) 71 % (HHV) (4) 76 % (LHV) (5)
Optimum overall efficiency : (6) (7) 77 %
Optimum heat transfer efficiency : (8) 76 %
Average particulate emissions rate : (9) 1.32 g/h
Average CO : (10) 92 g/h

(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

(2) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(3) As measured per CSA B415.1-10 stack loss method.

(4) Higher Heating Value of the fuel.

(5) Lower Heating Value of the fuel.

(6) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

(7) Optimum overall efficiency at a specific burn rate (LHV).

(8) The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.

(9) This appliance is officially tested and certified by an independent agency.

(10) Carbon monoxyde.

GENERAL FEATURES

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 22"
Log positioning Loading over width and over depth
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 15'
Baffle type C-Cast or equivalent
Approved for an alcove installation Yes
Approved for a mobile home installation Yes, with fresh air intake
Shipping Weight 524 lb (238 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 18 7/8" x 11 3/4"
Glass air-wash system Yes
Premium quality blower included (CFM) 130
Overall dimension (Height) 34 3/4"
Overall dimension (Width) 28 7/8"
Overall dimension (Depth) 33 1/2"
Door opening – dimension (Height) 9 7/8"
Door opening - dimension (Width) 19"
Firebox – dimension (Height) 12 7/8"
Firebox – dimension (Width) 22 7/8"
Firebox – dimension (Depth) 20 1/8"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Model Pedestal
Steel thickness – body 3/16"
Steel thickness – top 5/16"
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S627
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime

Installation Manual

Dimensions
