RAIS Nexo 100 Wood Burning Stove

The Nexo 100 wood stove has a streamlined and elegant design that is both discreet and head-turning. Nothing breaks the clean lines, and the stove is therefore the perfect match for modern, minimalistic architecture. The three-sided high tempered windows ensure a fantastic view of the flames. Add an optional turntable system to spin the fire is any direction for a dramatic effect.

A true achievement in modern design – in terms of quality, combustion and the environment.

Click here for Manual

Click here for CBI Test Report

Owner's Manual

Specifications

Heat

BTU Output: 19 kBTU

Heat Range (Min–Max): 13–19 kBTU

Heating Capacity (25–68°F): 1184 sq. ft

Emissions: 1.1 g/hr

Efficiency: 73+%

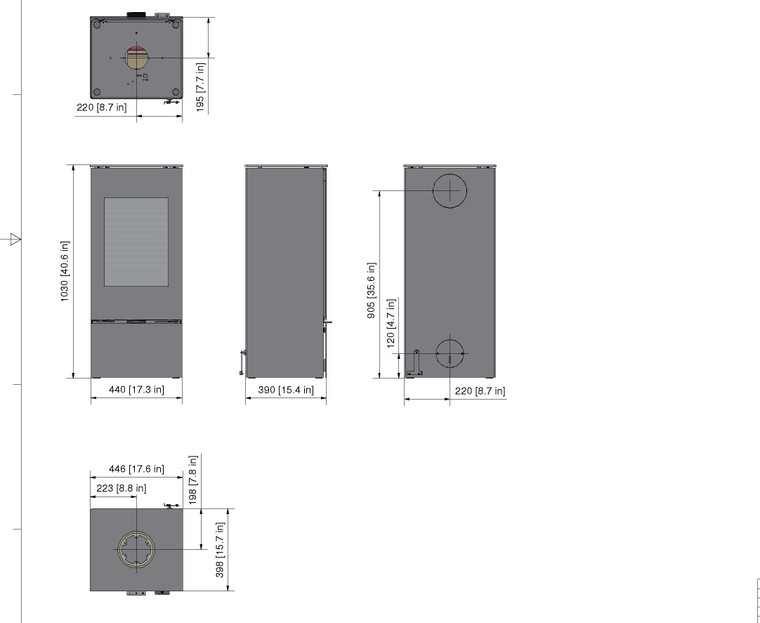

Dimensions (W–D–H)

Stove Exterior: 17.6" x 16.7" x 40.3"

Firebox Interior: 13.9" x 11.5" x 17.6"

Pipe Diameter: 6" single wall

Floor to Center of Top Exit: 40"

Floor to Center of Rear Exit: 35.6"

Weight

Stove: 293 lb
