Superior DRT63 Series Direct Vent See Thru Fireplaces

Superior 40" Direct Vent Gas Fireplace, See-Through, Electronic Ignition - 57,000 Btu's - Natural Gas

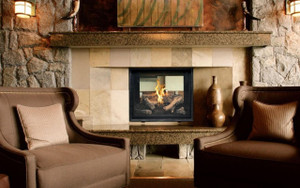

A stunning flush hearth smooth-face design combines with exceptional performance to complement any décor. The expansive ceramic glass viewing area with dramatic yellow flames makes the DRT63ST the perfect fit for your home.

EXCLUSIVE FEATURES

• Available in a 40” See Through model. Configurable as indoor/indoor or indoor/outdoor applications
• Gas controls are conveniently hidden to the side of the fireplace opening for easy installation and finishing
• Electronic ignition with battery backup to provide continued operation in the event of a power outage
• Six flame settings with up to a 33% turn-down for precise heat control
• Smooth-face design features ceramic glass for optimum heat transfer and a protective screen*
• Beautifully crafted aged oak high density fiber log set with heavy duty grate
• Interior liner selections consists of two-piece black reflective porcelain or ceramic fiber
• Full function remote control (T-stat, flame, IPI/CPI)
• Optional outdoor window kit, tested and listed to ASTM commercial window standard for air infiltration, water resistance, structural integrity and thermal resistance (U-Value/CRF) (not included)
• 20 year Limited warranty
• *All applicable models comply with ANSI Z21.50/88 barrier requirements.

Technical Specifications

• Maximum BTU Output: 57,000
• Min/Max Natural Gas Inlet Pressure: 5"/10.5" WC
• Min/Max Propane Inlet Pressure: 11"/13" WC
• Framing Dimensions: 52 1/16" W x 47 5/16" H x 26 5/16" D
• Actual Viewing Area: 34 3/4" W x 33 3/4" H
• Valve Type: IPI (intermittent pilot)
